DMS-80 distance sensor
DMS-80 distance sensor

DMS-80 distance sensor

DMS-80 distance sensor
Robotis | A-000000-00099
21.85 €
20 perc. French VAT inc.
The DMS-80 distance sensor offers to your Bioloid or Dynamixel mobile robots to measure distances and therefore to detect obstacles.
Quantity
In backorder
This product is on backorder. You can place an order on our website or send us a purchase order in PDF format
Contact us to know the delivery times
Ask for a quote

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Using the DMS-80 distance sensor

The DMS-80 distance sensor uses infrareds to measure a distance in a precise manner. It has a low sensibility to the obstacle's color.

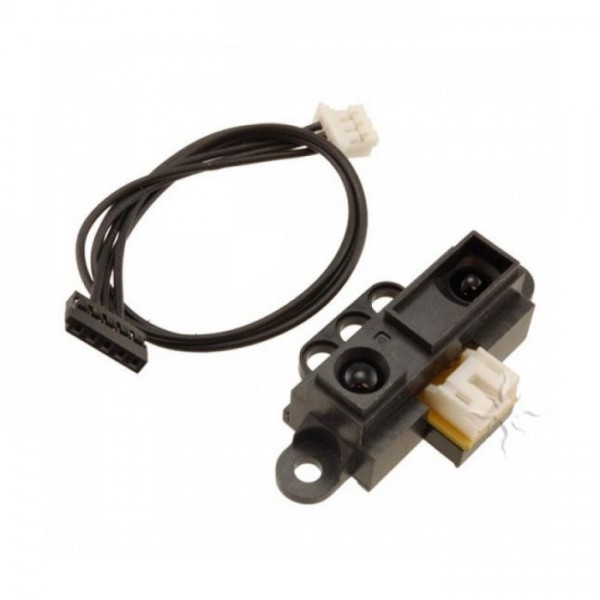

The DMS-80 distance sensor is shipped with a 3pins-5pins cable and can therefore be used with the CM-510, CM-530 andCM-700 controllers.

The pins of the DMS-80 distance sensor are as follows:

pins of the DMS-80 distance sensor dynamixel bioloid

  1. Supply voltage VCC (5V)
  2. Ground
  3. Analogic output ADC corresponding to the distance

The voltage on the ADC pin of the DMS-80 distance sensor can be linked to the distance to an obstacle using the following curves:

output voltage of the DMS-80 distance sensor dynamixel bioloid

Specifications of the DMS-80 distance sensor

  • Weight: 4.4g
  • Detection distance: 10 - 80 cm
  • Working voltage: 4.5 - 5.5 V
