FR08-D101K - frame for Dynamixel MX106
FR08-D101K - frame for Dynamixel MX106

FR08-D101K - frame for Dynamixel MX106

Robotis | A-000000-00527
Frame for Dynamixel actuators EX-106+ and MX-106 to control then in dual mode (two synchronized Dynamixel actuators that are controlled simultaneously in a parallel to increase the torque).
€48.00
Tax included
Quantity 13 Available
Get a quote online

Size Chart
x
Size Chart

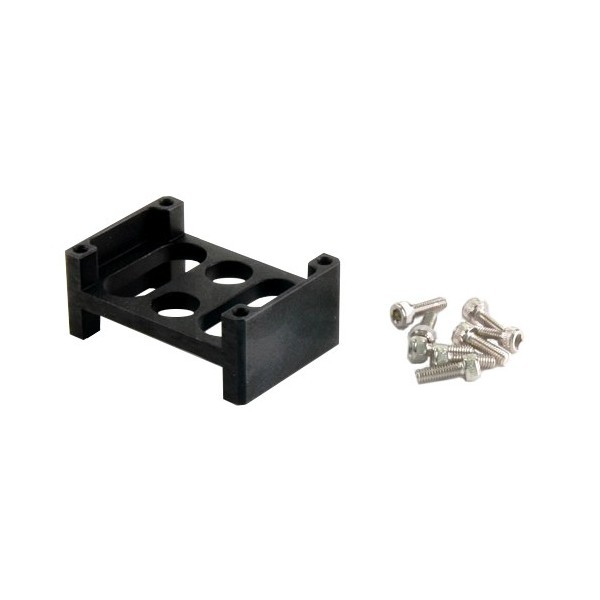

FR08-D101K frame set for Dynamixel actuators EX-106+ and MX-106R to be used in dual mode

This frame for Dynamixel actuators EX-106+ and MX-106R is used to link together two actuators for use in dual mode. The dual mode is reserved for Dynamixel EX-106+ and MX-106R actuators. It allows you to control two actuators simultaneously in order to increase the torque of the resulting system.

In the dual mode, one of the actuators is considered the master and the other slave. The slave actuator reproduces identically what the master servo does (general mode) or in the opposite direction (reverse mode).

Synchronization between the two actuators is done through special cable as presented in the following image:

How to connect two EX-106+ or MX-106R Dynamixel actuators for dual mode configuration
