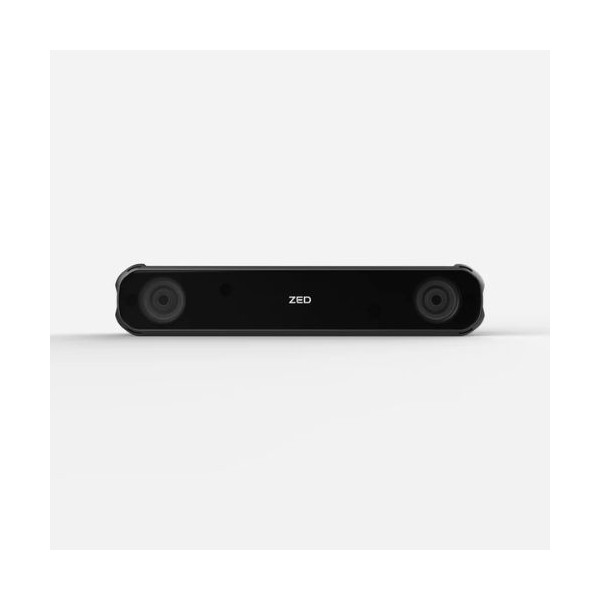

ZED X Depth Camera
ZED X Depth Camera
ZED X Depth Camera
ZED X Depth Camera
ZED X Depth Camera
ZED X Depth Camera
ZED X Depth Camera

ZED X Depth Camera

ZED X Depth Camera
Stereolabs | A-000000-07647
CHF833.13
20 perc. French VAT inc.

The ZED X camera from Stereolabs is a high-precision industrial stereo vision solution, ideal for autonomous robotics, digital twins, and advanced research applications.

Polarizer
-- Please select an item --
  • No Polarizer
  • With Polarizer
Lens Focal Length
-- Please select an item --
  • 2.2mm
  • 4mm
Quantity
Delivery within 1 to 2 weeks
Ask for a quote

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

ZED X Camera – Advanced 3D Vision for Autonomous Robotics

Powered by Stereolabs Terra AI technology and the ZED SDK, the ZED X delivers ultra-detailed depth maps, high-precision 3D localization, and effective semantic recognition. With its dual 2.3MP color global shutter sensors, it captures crisp, distortion-free images even in fast motion.

With a rugged IP67 aluminum enclosure, built-in industrial-grade IMU, secure GMSL2 connection, and support for up to four synchronized cameras, the ZED X is designed for uninterrupted operation in demanding environments. It seamlessly integrates with NVIDIA Jetson Orin and Xavier platforms for cutting-edge embedded AI projects.

Applications in Research and Robotics

  • Onboard vision for autonomous robots (indoor and outdoor)
  • 3D mapping and digital twin creation
  • Smart navigation and obstacle avoidance
  • Multi-camera perception with hardware synchronization
  • Motion analysis using visual-inertial SLAM
  • Object, person, vehicle tracking with 3D detection and segmentation
  • University research in robotics, AI, and computer vision

Technical Specifications of the ZED X Camera from Stereolabs

  • Dual 2.3MP color sensors with global shutter (3µm)
  • Maximum resolution: 2 x 1920x1200 pixels at 60 fps
  • Multi-camera synchronization (precision < 100 µs)
  • Secure GMSL2 connection – range up to 15 m without EMI
  • 16-bit industrial IMU (accelerometer 12g, gyroscope 1000°/s – 400 Hz)
  • Depth technology: Neural Stereo Depth Engine (up to 120 Hz)
  • Depth range: 0.3 m to 20 m (2.2 mm lens) / up to 35 m (4 mm lens)
  • Lenses: 2.2 mm (FOV 120°) or 4 mm (FOV 91°) – 9-element glass optics
  • Object tracking: people, vehicles, custom objects – ID, speed, 3D position
  • Skeleton tracking: 18 to 38 keypoints, up to 15 m range
  • IP streaming, H.264 / H.265 / lossless video recording
  • Dimensions: 164 x 32 x 37 mm – Weight: 240 g
  • Operating temperature: -20 °C to +55 °C
  • Power via GMSL2 (PoC), mounting 1/4"-20 UNC + M4
  • Compatible with NVIDIA Jetson Orin / Xavier, ZED SDK, ZED Box, ZED Link cards
