Piksi Multi Evaluation Kit (2.4GHz)

Piksi Multi: a multi-band GNSS receiver

The Piksi Multi Evaluation Kit allows you to enjoy the advantages of a GPS navigation system that’s accurate to within one centimetre. Even amateur creators will be able to use its high-precision navigation platform, equipped with 2 GNSS modules, 2 radio modems, 2 radio antennas, 2 survey antennas and all the connection and power supply equipment required for all these modules.

The Piksi Multi kit supports the GLONASS G1/G2, BeiDou B1/B2, Galileo E1/E5b, QZSS L1/L2 and SBAS navigation systems. Converging these signals increases the accuracy of the system’s internal clock, with a signal definition measured in seconds!

RTK to the rescue of autonomous navigation systems

The RTK satellite positioning technique makes navigation systems significantly more effective. It is a real breakthrough for manufacturers of autonomous mobile vehicles, because it offers an accuracy in centimetres instead of metres.

Technical specifications of the Swift Navigation Piksi Multi Evaluation Kit

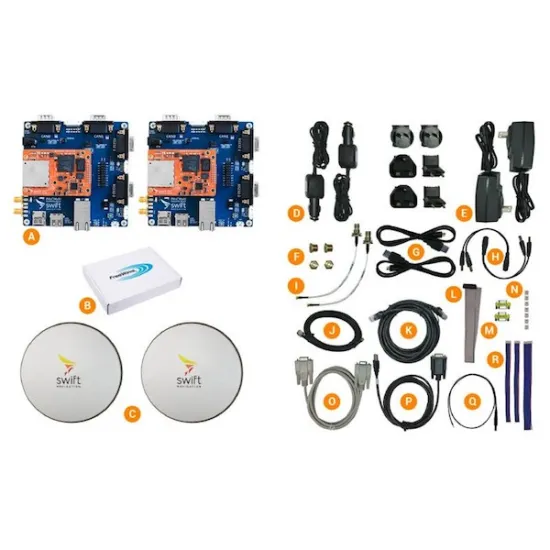

Kit contents:

• 2 Piksi Multi GNSS modules
• 2 Piksi Multi evaluation boards
• 2 MMCX cables (male)
• 2 micro USB cables
• 2 power supplies with international adapters
• 2 barrel jack to cigarette lighter adapters
• 2 DC barrel plug splitters (1 female into 2 male)
• 1 RS-232 USB adapter
• 1 mini null modem connector (DB9 male/DB9 male)
• 1 IDC ribbon cable
• 2 tripod mount adapters
• 1 Ethernet cable
• 1 Picoblade pigtail cable, 11 positions
• 2 Picoblade pigtail cables, 7 positions
• 2 SMA antenna cables (male)/TNC (male)
• 2 L1/L2/L5 GPS/GLN/BDS survey antennas
• 2 FreeWave radio modems
• 2 FreeWave radio antennas

Resources for the SwiftNav Piksi Multi Evaluation Kit

Below you will find all the information you need concerning the 2.4 GHz Piksi Multi Evaluation Kit.

• Technical specifications of the Piksi Multi Evaluation Kit (en)
• Case study no. 1 with the Piksi Multi Evaluation Kit (en)
• Case study no. 2 with the Piksi Multi Evaluation Kit (en)
• Swift Navigation Piksi Multi Evaluation Kit support portal (en)
