YDLidar | A-000000-06919
655.20 €
20 perc. French VAT inc.

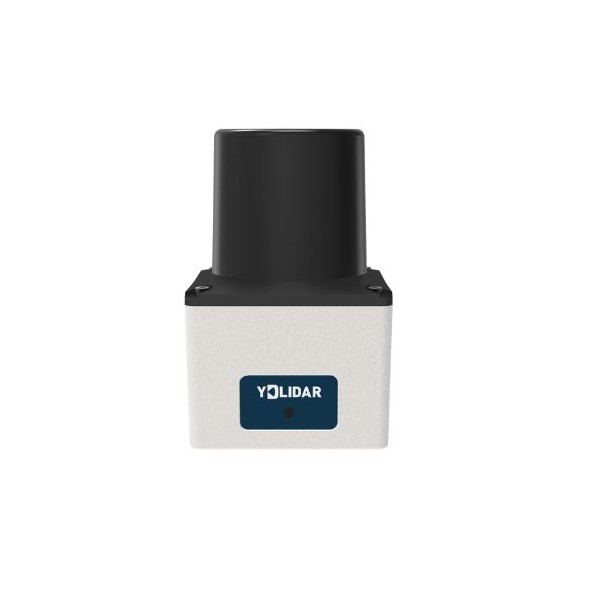

The YDLIDAR TIA utilizes ToF (Time of Flight) telemetry technology for precise distance measurements, making it ideal for outdoor industrial applications. It offers resistance to ambient light, dust, and water.

Delivery within 2 to 3 weeks

Size Chart
Size Chart
Payment methods (see T&C)
Debit card
Payment by invoice
Wire transfer

Single-Line Scanning Design

Thanks to ToF (Time of Flight) telemetry technology, distance is measured based on the round-trip time difference of laser pulses. The precision of the LiDAR telemetry remains consistent regardless of distance, enabling the detection of objects at long distances.

LIDAR for Outdoor Applications

It features an industrial interface and employs a network protocol for point cloud data transmission. With this LIDAR, you can meet the requirements of outdoor application scenarios due to its IP67-rated dust and water resistance. Additionally, it has a strong capability to resist ambient light interference.

YDLIDAR TIA Laser Rangefinder

Multiple Applications in an Industrial Environment

The YDLIDAR TIA rangefinder enables the implementation of various industrial solutions, including:

  • Interactive virtual multimedia
  • Industrial automation
  • Smart transportation
  • Robotics and research
  • Robot navigation and obstacle avoidance
  • Environmental scanning and 3D reconstruction
  • Regional security

Technical Specifications of YDLIDAR TIA Laser Rangefinder

  • Frequency Range: 20KHz to 40KHz
  • Range: 0.05m to 25m
  • Angle Resolution: 0.18 to 0.54 (20KHz), 0.09 to 0.27 (40KHz)
  • Dimensions: 53mm x 53mm x 82mm
  • Horizontal Field of View: 300°
  • Scanning Frequency: 10 to 30Hz
  • Operating Voltage: 9V to 28V DC
  • Power Consumption: 2.4W to 3W
  • Temperature Range: -10°C to 50°C
  • Laser Wavelength: 895nm to 915nm
  • Ambient Light: 80,000 LX
  • Protection Rating: IP67
  • Laser Wavelength: 895nm to 915nm
  • Statistical Error: 20mm
