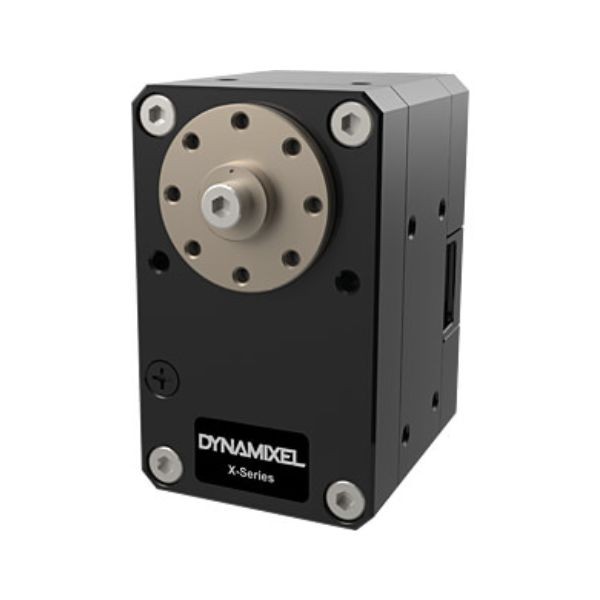

  8. Dynamixel XH430-V210-R Servo
Servomoteur Dynamixel XH430-V210-R
Servomoteur Dynamixel XH430-V210-R

Dynamixel XH430-V210-R Servo

Servomoteur Dynamixel XH430-V210-R
Robotis | A-000000-02767
€424.96
Tax included

Including €0.01 for ecotax

Quantity
Delivery within 4 weeks
Generate a quote

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Dynamixel XH430-V210-R Servo: excellence and versatility at stake

The servo motors in the Dynamixel XH series target the high-end market of the most hard-to-please robotics engineers, looking for a fully controllable servo with 6 working modes. You make all the decisions: you can control speed, position, trajectory and power, even in PWM mode, which will delight the fans of radio-controlled vehicles.

Robotis XH430-V210-R servo: give free rein to your imagination

The Robotis XH430-V210-R servo comes with an aluminium case which has been redesigned to reduce friction as the connecting cables can be set up in three different positions (keeping them out of the way when the servo is on). Plus, the hardware compatibility is excellent (frames, mounts, etc). Just check the table below.

You’ll get a servo that’s compatible with all mobile or articulated robotics platforms, in terms of hardware, components, and ideas!

As usual, you can use your PC (Windows, Mac, or Linux) with the USB2Dynamixel or a suitable microcontroller to control your Dynamixel servo (see below th elist of the required components):

Technical specifications of the Robotis 902-0130-000 actuator

The Dynamixel XH430-V210-R servo comes with:

  • 1x HN12-N101 horn assembly
  • 1x Teflon washer (for horn assembly)
  • 1x 180 mm X3P cable
  • 1x 180 mm X3P cable (convertible)
  • 16x Wrench Bolt M2.5*4 screw
  • 1x Wrench Bolt M2.5*6 screw
  • 10x Wrench Bolt M2*3 screw
  • 8x spacer ring
  • Specifications:
  • Weight: 82g
  • Dimensions: 28.5 × 46.5 × 34 mm
  • Reduction ratio: 212.6: 1
  • Starting torque (N.m): 2.6 @ 24V
  • Starting current (A): 0.7 @ 24V
  • No-load speed (RPM): 52 @ 24V
  • ST CORTEX-M3 processor (STM32F103C8 @ 72 MHz, 32 bit)
  • Absolute contactless encoder (12 bit, 360°)
  • Coreless motor
  • Resolution: 0.088° x 4,096
  • Operating range:
  • In position control mode: 360°
  • In speed control mode: endless rotation
  • Supply voltage: 24V (recommended: 24V)
  • Operating temperature: -5 to 80°C
  • Control signal: digital packets
  • Communication protocol: RS485 half-duplex asynchronous serial communication (8 bit, 1 stop, no parity)
  • Physical connection: RS485 multi-drop bus
  • Addresses: 253 IDs (0~252)
  • Transmission rate: 9,600 bps~4.5 Mbps
  • Feedback: position, velocity, current, real-time tick, trajectory, temperature, input voltage, etc.
  • Case in metal and engineering plastic
  • Metal gears
  • Standby current: 36 mA
How to choose the right Dynamixel servomotor?

Resources for the Dynamixel 902-0130-000 actuator

Still can’t figure out everything your Dynamixel XH430-V210 servo has to offer? Find out more with these must-read resources:

Data sheet
Origine
KR
Serie
XH
Tension de fonctionnement [V]
24
Couple de décrochage [N-m]
2 - 2.9
Courant de décrochage [A]
1
Vitesse à vide [rpm]
50 - 59
Protocole de communication
RS485
Specific References
EAN13
8809052932084
    My Dynamixel servomotor is not detected, what can I do about it ?

    Check that your Dynamixel servomotor is correctly configured. Do not hesitate to re-flash it with the ROBOTIS Software Roboplus. After re-flash remember to re-configure it. If the issue is not solved, contact us for an advanced support.

    My motor works but it seems like there is an offset. Why ?

    The motor is probably not well mounted. Check that you correctly mounted the horns by respecting the mark.

    My Dynamixel servomotor seems blocked. I can't turn it even when it is not alimented.

    There is probably a mechanical issue with the Dynamixel servomotor. You can directly contact us to get more advance support.

    My Dynamixel servomotor is not working properly.

    Check your power supply and the system cabling (try with a different servomotor). You can also reset the servo. If nothing works, the best solution is to go through the Dynamixel servomotor checklist!

    What is the difference between Protocol 1.0 and Protocol 2.0?

    The 1.0 protocol is dedicated to the Dynamixel AX and MX series. Protocol 2.0 is for the X and Dynamixel Pro series. Protocol 2.0 control tables include PID controls which allow for more precise adjustment of the servo motor movements. Protocol 2.0 can be updated on MX series servo motors. You can refer to the protocol 1.0 and protocol 2.0 pages for more informations.
