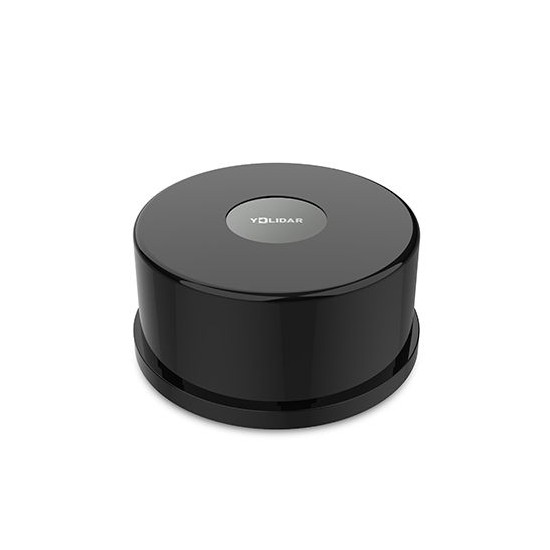

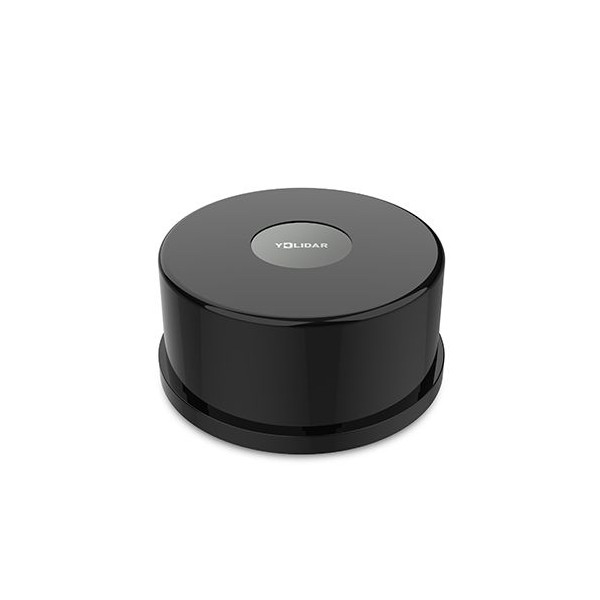

360 Degree Laser Scanner YDLIDAR TG15

360 Degree Laser Scanner YDLIDAR TG15

360 Degree Laser Scanner YDLIDAR TG15
YDLidar | A-000000-06524
449.28 €
20 perc. French VAT inc.

The YDLIDAR TG15 Lidar is a 2D LiDAR with a 360° scanning angle.

2 Available

Get it in 24/48h! (see T&C)

Size Chart
Size Chart
Payment methods (see T&C)
Debit card
Payment by invoice
Wire transfer

A Powerful LiDAR for Accurate and Reliable Measurements

Compact and powerful, the YDLIDAR TG15 is designed to provide precise and reliable measurements in a wide range of applications. Whether you work in robotics, mapping, autonomous navigation, or obstacle detection, the TG15 offers exceptional performance.

  • Advanced Laser Technology: The TG15 utilizes advanced laser technology to measure distances and angles accurately. Its high-frequency laser beam enables fast and precise measurements, with an angular resolution of up to 0.22°.
  • Extended Range: This Lidar has a maximum detection range of 15 meters, making it an ideal choice for applications requiring extended coverage. It can easily detect objects at a distance and provide reliable data for autonomous navigation or mapping.
  • Low Power Consumption: The TG15 is designed to be energy-efficient, making it suitable for mobile and autonomous applications. It can be powered by a rechargeable battery or an external power source, offering flexibility.
  • Flexible Communication Interface: This Lidar is equipped with a USB interface, making it easy to integrate into different systems. A USB cable can connect it to a computer, development board, or other compatible devices.
  • Precision and Reliability: The TG15 offers high measurement accuracy with a distance error of less than 1% and an angle error of fewer than 0.5 degrees. It features an automatic error correction mechanism, ensuring accurate and reliable data in all conditions.
  • Easy Installation and User-Friendly: This Lidar is designed to be user-friendly and easy to install. It has a mounting bracket and clear instructions to facilitate integration into various projects. Additionally, it is accompanied by comprehensive documentation and technical support to meet your needs.

Possible Applications

  • Robotics and Drones: The TG15 can be used for navigation and obstacle avoidance in autonomous robots and drones.
  • Mapping and Topography: It is ideal for 3D mapping, terrain modeling, and accurate geospatial data collection.
  • Security and Surveillance: It can be used for intrusion detection, perimeter surveillance, and motion detection.
  • Industrial Automation: The TG15 can be integrated into automated transportation systems, sorting machines, and other industrial applications requiring precise object detection.

Technical Specifications of TG15 LiDAR

  • Protection Rating: IP65
  • Omnidirectional Scanning: 360 degrees
  • Angular Resolution: 0.09° - 0.22°
  • Range: 0.05 - 15 meters
  • Scanning Frequency: 5-12Hz
  • Telemetry Frequency: up to 20kHz
  • Class I Eye Safety
  • Dimensions: Φ75.8*34.7mm
How to choose your lidar laser rangefinder
